ZR® Mini Precision Intelligent Miniature Semi-automatic Metal Lathe Machine Tool Auto Left&Right Threading Making 200-500W Adjustable 0-2000 rpm

Technical Parameter:Size:600*275*260MMPacking size:755*430*455N.W.:20KGG.W.:32KGRated power:220V/50HZMotor parameters:220V/500W/4000rpmSpindle speed:3-speed belt adjustment, corresponding to the rotation speed: 0-1200 rpm/0-1800 rpm/0-2400 rpmSwitch type:Power switch,Forward and reserve switch,Emergencystop switch,Stepless speed switchCenter Distance:250MMCentre height:65MMHorizontal travel:50MMSmall pallet travel:50MMTail stock travel:25MMThree jaw chuck capacity:Positive jaw clamp 2-22MM,Positive paw brace25-70MM,Reversed jaw clamp 22-63MMSpeed adjustment: Stepless speed regulationSpindle through hole diameter:19MMSpecial drill bit clamp for tailstock:Can be optionalSlide table quick engagement handleHandwheel scale reset to zeroProtecting coverFetures:Working material:Plasticsoft metal(aluminize/copper etc),45#steel，solid woodAuto Milling Speed:0.01-0.4MMThread turning:Can turn metric (0.1-3.5)/imperial threadsEmergency stop switch: One-key emergency stop function

• Size:600*275*260;Packing size:755*430*455MM;N.W.:20KG;G.W.:32KG;Rated power:220V/50HZ;Motor parameters:220V/500W/4000rpm
• Center Distance:250MM;Centre height:65MM;Horizontal travel:50MM;Small pallet travel:50MM;Tail stock travel:25MM;Three jaw chuck capacity:Positive jaw clamp 2-22MM,Positive paw brace25-70MM,Reversed jaw clamp 22-63MM
• Working material:Plasticsoft metal(aluminize/copper etc),45#steel，solid wood;Auto Milling Speed:0.01-0.4MM;Thread turning:Can turn metric (0.1-3.5)/imperial threads;Emergency stop switch: One-key emergency stop function
• Use electronic controller to support 8-40V DC voltage input,The controller can realize reciprocating turning, threading, gear shaping and other functions
• Supports 10-3000 lines of photoelectric incremental encoders, and the encoder pulses support 1 decimal point. Even if the variable ratio of the spindle speed encoder is not an integer, the accurate number of encoding pulses can be calculated through the controller's calculation function
• Using a 32-bit microcontroller, it has powerful performance and rich functions, and can display the cutting distance of the pallet in real time throughout the entire process;Semi-automatic thread turning function, available in metric and imperial systems
• LCD screen display can clearly display real-time functional data such as lathe speed;Suport Chinese and English

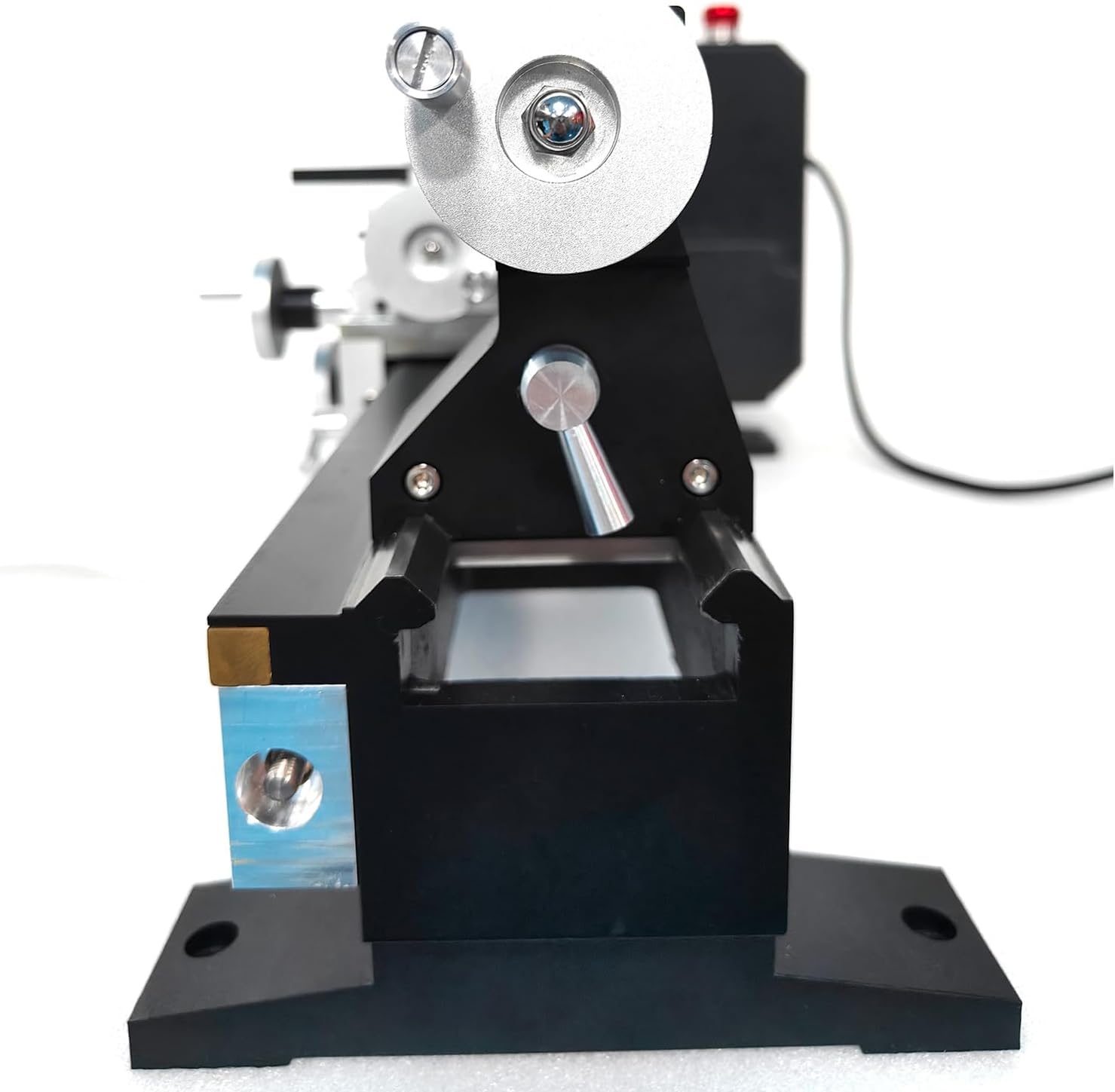

• The bed is made of cast iron, which is naturally , strong and durable. The assembly position is CNC precision machined and the surface is powder sprayed;The Headstock adopts integrated gravity casting + CNC precision machining, and the surface is powder sprayed
• Except for the bottom slider of the middle pallet, which is made of iron CNC machined, the remaining parts are made of aluminum alloy CNC machined with surface oxidation process. All small pallet parts are made of aluminum alloy CNC machined with surface oxidation process
• The tailstock parts are CNC machined using aluminum alloy + iron parts, with surface oxidation and powder spraying processes;The handwheels are all made of aluminum alloy, processed by CNC lathe, and surface oxidation process
